A universal garage door keypad only works if it speaks your opener’s language. Before you buy anything, check three things on the motor unit in your garage: the color of the Learn button, the radio frequency, and the code system (Security+, Intellicode, or an older fixed code). Match those, and almost any well-made universal pad will program in minutes. Skip the check, and the most common result is a return trip.
If you want the short version: the widest-coverage keypad we could verify is the Genie GUK-BX Universal Wireless Entry Keypad at $45.89 from The Genie Company’s own store. If your opener is a Chamberlain, LiftMaster, or Craftsman made after 1997, the Chamberlain CH348 at $49.98 from Home Depot is the simpler, brand-matched buy. Every price in this guide was checked on the seller’s page on October 21, 2026, and each pick below names its source and its limits, because no universal keypad covers everything.
What “Universal” Really Means for a Garage Door Keypad
“Universal” does not mean “works with every opener ever made.” It means the keypad carries several code systems and frequencies inside one housing, and you tell it during programming which one your opener uses. A universal garage door keypad has to match your opener on two separate points, and failing either one means no connection.
First, the frequency. Garage door radios in North America mostly run on 310, 315, or 390 MHz, with a few brands on their own channels, such as Wayne Dalton at 372.5 MHz. Second, the code format. Modern openers use rolling code systems that change the signal after every use: Chamberlain Group calls theirs Security+ and Security+ 2.0, Genie and Overhead Door use Intellicode and CodeDodger, and Linear uses MegaCode. A keypad that has the right frequency but the wrong code format still will not pair.
There is also a hard floor under all of this. Universal accessories are built for openers made in 1993 or later with working safety sensors, the photo-eye beams near the floor on both sides of the door. Genie states the same rule for its accessories: 1993 or newer, with functional safety sensors. If your opener predates that, a universal keypad is the wrong purchase, and the DIP switch section below explains your real options.
Check Your Opener First: The 5-Minute Compatibility Test
You need a step ladder and five minutes. Do this before you open a single product page, because the answer decides which products are even candidates.

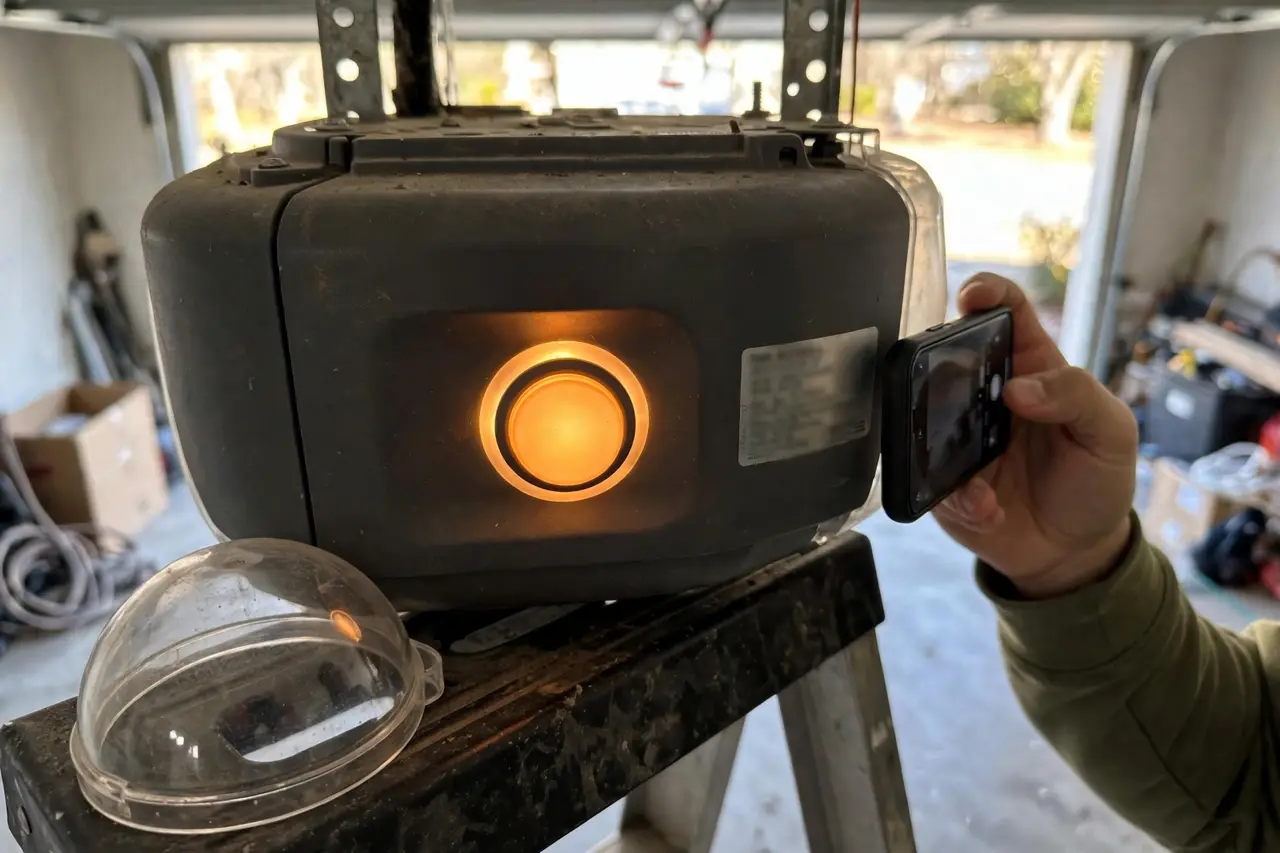

- Find the Learn button. It sits on the back or side of the motor unit, sometimes behind the light cover. On Genie openers it may be labeled Program or Learn Code. Note its color: yellow, purple, red or orange, green, or on the newest units, white or brown.
- Read the model plate. Write down the brand, model number, and year. The plate often lists the frequency too. A phone photo of the plate and the Learn button beats memory when you are standing in a store aisle.
- Confirm the safety sensors work. Both sensor eyes near the floor should be lit. If one eye is dark or blinking, fix that first; remotes and keypads are not the problem, and no new keypad will pair reliably until the opener itself is healthy.
- If there is no Learn button, stop. Your opener uses DIP switches, a row of tiny numbered switches inside the opener or the old remote. That is a different buying path, covered in its own section below.
- Run your findings through the maker’s checker. Chamberlain’s compatibility tool asks for your brand and Learn button color and returns the exact accessories that fit, and Genie publishes a chart for its universal keypad the same way.
💡 Practical Home Tip: Take the photo of the Learn button in daylight with the garage light on. Yellow and white buttons, and old faded orange ones, are easy to misread in a dark garage, and the button color is the single fact your purchase depends on. If the color looks in-between, program by the model number on the plate instead.

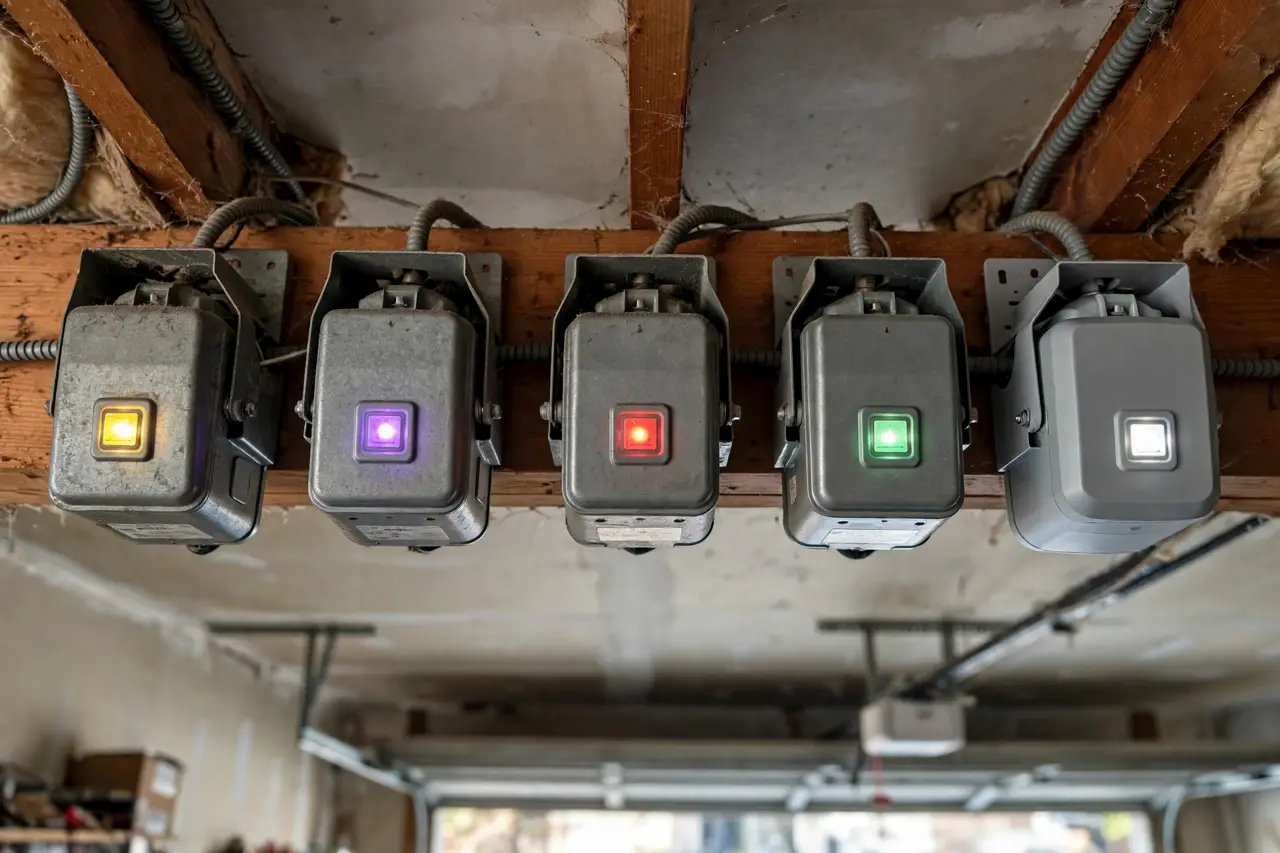

Universal Garage Door Keypad Compatibility Table
Match your opener’s row first — the right keypad is the one in your row, not the one with the best reviews.
| What you find on your opener | Code system | Frequency | What to buy |
|---|---|---|---|
| Yellow Learn button — Chamberlain, LiftMaster, Craftsman (2011–today) | Security+ 2.0 rolling code | 310 / 315 / 390 MHz | Genie GUK-BX keypad, Chamberlain CH348 keypad, or LiftMaster 893MAX remote |
| Purple Learn button (2005–2010) | Security+ rolling code | 315 MHz | Genie GUK-BX keypad, Chamberlain CH348 keypad, or LiftMaster 893MAX remote |
| Red or orange Learn button (1997–2005) | Security+ rolling code | 390 MHz | Genie GUK-BX keypad, Chamberlain CH348 keypad, or LiftMaster 893MAX remote |
| Green Learn button (1993–1997) | Billion Code | 390 MHz | Genie GUK-BX keypad or LiftMaster 893MAX remote (the CH348 starts at 1997 models) |
| White or brown Learn button — newest openers (2025–today) | Security+ 3.0 | New Bluetooth-based system | Chamberlain CH348 keypad; confirm any other pad in Chamberlain’s tool before buying |
| Genie or Overhead Door with a Program/Learn button (1995–today) | Intellicode / CodeDodger rolling code | 315 / 390 MHz | Genie GUK-BX keypad, Genie GK-R keypad (in the bundle below), or Genie GM3T-R remote |
| Linear with a Learn button (1997–today) | MegaCode rolling code | Brand frequency — check the opener label | Genie GUK-BX keypad |
| Wayne Dalton (1999–today) | Rolling code | 372.5 MHz | Genie GUK-BX keypad |
| Wayne Dalton, older models | Rolling code | 303 MHz | None of the picks below — Genie confirms its universal keypad does not cover 303 MHz |
| No Learn button; DIP switches inside (mostly pre-1993) | Fixed code | Varies by brand | A few chart-listed models only — read the DIP switch section before buying anything |
Two reading notes. First, the years are guides, not proof — manufacturers overlapped generations, so trust the button color and the model plate over the calendar. Second, brand ecosystems are real walls: the Chamberlain CH348 and the LiftMaster 893MAX never run a Genie opener, and the Genie GK-R never runs a Chamberlain one. The GUK-BX is the only pick here that crosses those walls, which is why it leads the list. LiftMaster’s support site publishes its own compatibility matrix if you want a second check on Chamberlain-family models, including the models its universal accessories do not cover.

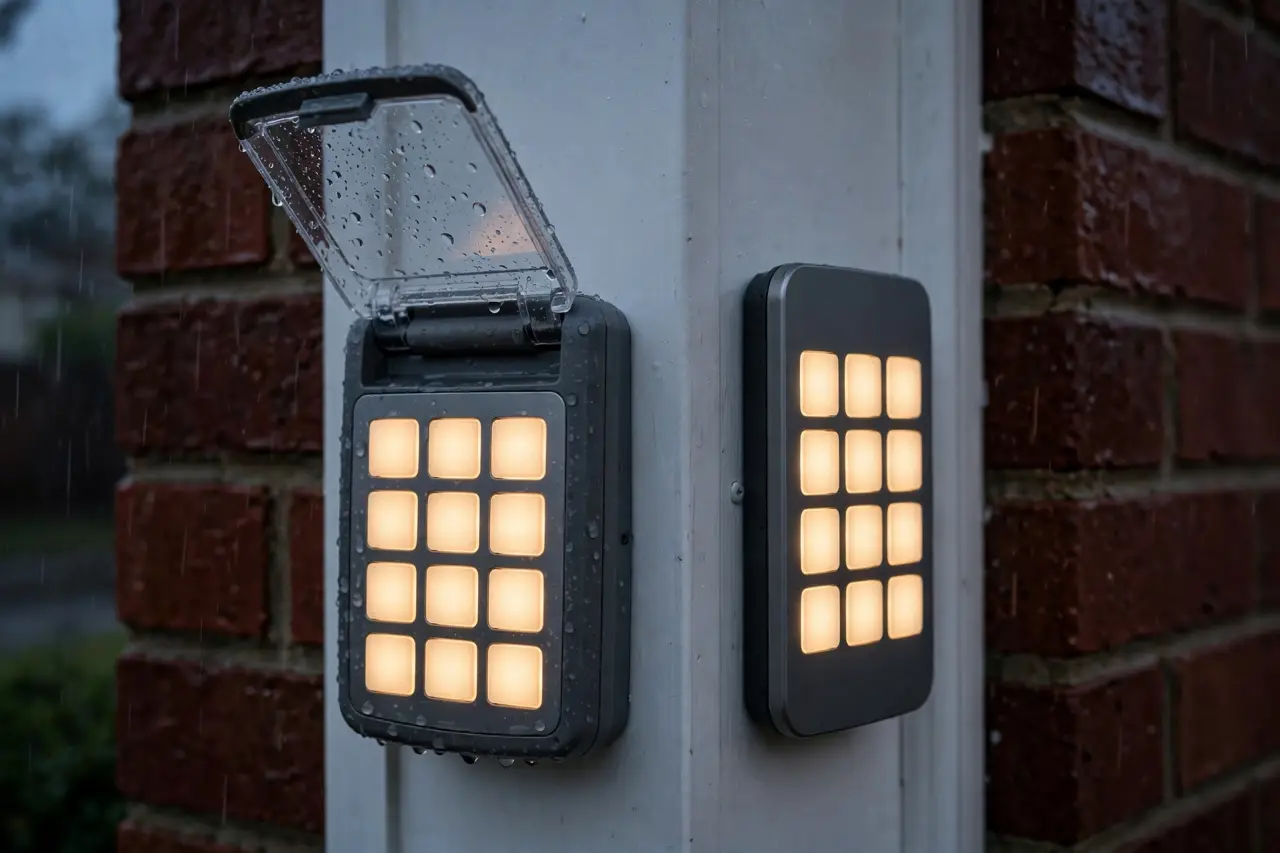

The Best Universal Garage Door Keypads, With Verified Prices
All prices in this guide were checked on the seller’s own page on October 21, 2026. Prices move, especially around sales, so treat them as the verified price on that date, not a promise. Where a well-known model could not be price-verified on a retailer or manufacturer page, it was left out rather than guessed at.
Genie GUK-BX Universal Wireless Entry Keypad — $45.89 at The Genie Company store
This is the true universal pick. The GUK-BX works with Genie and Overhead Door Intellicode openers, Chamberlain, LiftMaster, and Craftsman openers with purple, red/orange, yellow, and green Learn buttons, Linear openers, and Wayne Dalton openers on 372.5 MHz — and Genie’s own support answers confirm it pairs with LiftMaster Security+ 2.0 models as well. One pad can run up to three openers, even a mix of brands, which makes it the right buy for a two-door garage with two different opener brands. It uses two AAA batteries, carries a one-year warranty, and Genie publishes the full compatibility chart with the instructions, including a short list of older DIP switch models it can mimic with on-screen switch codes. Its limits are stated just as clearly by Genie: it does not work with Raynor openers at all, it does not cover Wayne Dalton’s 303 MHz models, and it does not replace a keypad on Genie’s own oldest DIP switch openers. Genie’s product page and FAQ for this keypad are on the Genie universal keypad page.
Chamberlain CH348 Wireless Keypad — $49.98 at Home Depot
Buy this one when your opener is already in the Chamberlain family. The CH348 works with Chamberlain, LiftMaster, and most Craftsman openers made after 1997 with safety sensors, across the yellow, purple, red, orange, brown, and white Learn buttons — including the newest Security+ 3.0 openers, which most older universal pads cannot talk to. It runs up to two doors, lets you create temporary PINs for guests or a dog walker, closes the door with one touch on the way out, and ships with its 9V battery and a one-year warranty. The trade-off is the wall around it: no Genie, no Linear, no Wayne Dalton, no other brand at all, and nothing from before 1997. If your ceiling holds a Chamberlain-made unit and nothing else, that narrowness buys you the simplest setup of any pad here. If you have two brands in the garage, buy the Genie above instead.
The Best Universal Garage Door Remotes, With Verified Prices
A keypad lives on the wall; a remote lives in the car. Most households end up with one of each, and the compatibility rules are identical — the remote has to match the same Learn button color and code system as the keypad. Our full walk-through of remote types and programming is in the garage door opener remote guide; these are the two remote buys that pair cleanly with this article’s keypad picks.
LiftMaster 893MAX 3-Button Visor Remote — $36.95 at Gate Openers Unlimited
The 893MAX is the broadest remote inside the Chamberlain ecosystem. One remote covers all four Learn button generations — green Billion Code (1993–1997), red/orange Security+ at 390 MHz (1997–2005), purple Security+ at 315 MHz (2005–today), and yellow Security+ 2.0 (2011–today) — on LiftMaster, Chamberlain, and Chamberlain-made Craftsman and Raynor openers built since January 1993. Its three buttons can each run a different opener, gate operator, or myQ light accessory, and it uses a standard CR2032 battery. That breadth makes it the standard replacement when an old remote dies and you are not sure which generation your opener is. Its limits mirror the CH348’s: it speaks only Chamberlain-family radio, so it will not run a Genie, Linear, or Wayne Dalton opener, and it is not a fix for DIP switch systems.
Genie GM3T-R Master Remote — in the GK-R + GM3T-R bundle, $80.58 at The Genie Company store
This bundle earns its place for one specific household: an older Genie. The GM3T-R Master Remote works with Genie Intellicode 1 and Intellicode 2 openers, and — this is the rare part — with Genie’s older DIP switch openers, as long as they run on 315 or 390 MHz, which Genie’s own support confirms directly. The GK-R keypad in the same box is a clean, simple pad for Genie Intellicode openers only: it runs up to three doors, takes a PIN of 3 to 8 digits, and uses two AAA batteries. Be clear about the split before you buy: on a DIP switch Genie, the remote in this bundle works and the keypad does not. If your Genie is a modern Intellicode model and you only need a pad, the GUK-BX above is cheaper and covers more brands.
No Learn Button? DIP Switches and Pre-1993 Openers

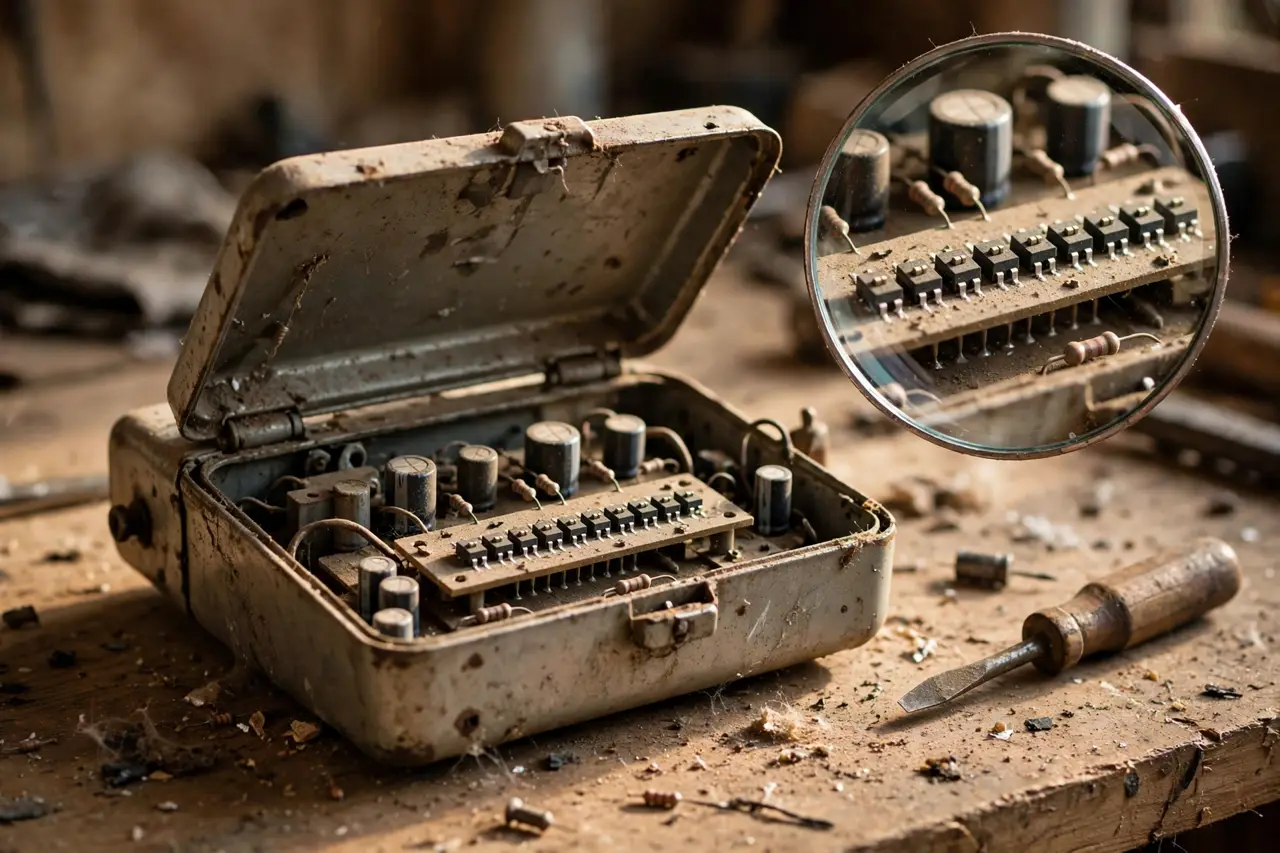

If your opener has no Learn button, it almost certainly sets its code with DIP switches: a row of 8 to 12 tiny switches, each flipped up or down, inside the motor unit or the back of the old remote. Every remote and the opener must share the same switch pattern. This fixed-code design predates rolling code, which is why modern universal accessories mostly skip it.
Here is the honest state of your options. Genie states plainly that it no longer makes any keypad that works with its own DIP switch openers, and that the fix on those units is either the GM3T-R remote above or adding an external receiver conversion kit, which wires a modern receiver to the old opener so current keypads and remotes can pair with it. The Genie GUK-BX is the exception worth checking: its compatibility chart lists a limited set of other brands’ DIP switch models, such as certain Overhead Door units, which it matches by entering the switch pattern as a code. If your exact model is not on that chart, do not gamble on it. And for a pre-1993 opener with no safety sensors at all, the genuinely right answer is not an accessory: opener replacement is the safer spend, because the sensors are a required safety feature, not an option.
How Programming Works, in Brief
Every pick in this guide programs the same way at heart: you put the opener into learn mode with its Learn or Program button, tell the keypad or remote which system it is talking to (on LiftMaster-family pads, by pressing ENTER a set number of times for your button color), enter your PIN, and test. The whole job usually takes under ten minutes, and the step most people miss is programming the pad before mounting it, while you can still stand next to the opener. Work with the door in clear view, keep the doorway empty while you test, and never let a child treat the keypad as a toy. The full button-by-button sequences for each brand, plus what to do when a keypad will not take a new code, are in our guide to how to reprogram a garage door keypad.
When a Universal Keypad Is the Wrong Buy
- Your operator is commercial or shared. Gate operators, apartment and condo parking operators, and managed-access systems use their own receivers and credentials. A retail universal pad is not made for them, and your building manager or HOA controls changes anyway — ask before buying anything.
- Your opener is a proprietary smart model. Some newer openers handle access through their own app and accessory line. If the maker’s compatibility tool does not list a universal pad for your model, believe it.
- Your opener is pre-1993 with no safety sensors. No keypad fixes that, and it should not be worked around.
- Your frequency is an orphan. Wayne Dalton’s 303 MHz units are the common example: real openers, still running, and outside every universal chart we checked.
- You rent. A wireless pad is two screws and no wiring, so it is one of the more renter-friendly upgrades there is — but get the landlord’s okay before drilling into the door frame.
A short safety note: keypads and remotes are low-risk accessories, but programming puts you on a ladder next to a powered door. Keep people and pets clear of the doorway while testing, and if your opener’s wiring, springs, or door balance need work, that is a job for a garage door professional, not a weekend project.
Frequently Asked Questions
Can I use any keypad with any garage door opener?
No. A universal keypad covers many brands, but each opener still has to match on code system and frequency, and brand keypads are stricter: the Chamberlain CH348 only runs Chamberlain-family openers, and the Genie GK-R only runs Genie Intellicode models. Check your Learn button color and model against the maker’s chart before ordering.
How many different openers can you control with the Genie Universal Keypad?
Up to three. The Genie GUK-BX can run a combination of three different openers, each programmed separately, and they do not all have to be the same brand. The Chamberlain CH348 runs up to two doors, within the Chamberlain family only.
How do I reprogram a garage keypad without the manual?
Start with the Learn button on the opener: press it once, then enter your PIN on the keypad within about 30 seconds and confirm, following the press-count pattern for your button color. Exact sequences differ by brand and model, so use the model-by-model steps in our reprogramming guide rather than guessing.
What battery does a garage door keypad take?
It depends on the pad. The Chamberlain CH348 and older LiftMaster-family pads use a single 9V battery, while Genie’s GUK-BX and GK-R run on two AAA batteries. Remotes such as the LiftMaster 893MAX use a CR2032 coin cell. Check the battery door before a store run, because a dim backlight is the classic sign the battery is going.
Why does my garage door keypad only work sometimes?
Intermittent operation is almost always the battery or a worn keypad membrane. A dying battery works on warm days and fails in cold snaps, and a worn membrane makes specific digits need extra presses. Swap the battery first; if the same digits keep misbehaving after that, the pad itself is worn and replacement is the fix.
The Bottom Line
Buy the match, not the marketing. Find your Learn button color, confirm the frequency and code system, and the table above points you at the right product: the Genie GUK-BX at $45.89 for the widest coverage, the Chamberlain CH348 at $49.98 for a Chamberlain-family garage, and the LiftMaster 893MAX remote at $36.95 when it is the car remote that died. Prices were checked on October 21, 2026. Program the pad before you mount it, test it with the door in view, and you are done in one short session.
